Experience

Worldwide leadership position in design, development and supply of global solutions for the off-highway vehicle market

IoT

A flexible and innovative approach. IoT is at the core of COBO strategy of becoming a Systems & Services Company

Universal platform

Applications in different fields, from agriculture to earthmoving and lifting machines, from transport & logistics to municipal vehicles

Cost saving

Cost reduction and increase of productivity in the after sale assistance of the off-highway vehicle market
COBO Group accepted the challenge of the Internet of Things (IoT) by launching the flexible server-based architecture COBO INTOUCH which puts in connection COBO devices with a web-server interface, attractive and dynamic, multilanguage and customized with colours and logos.

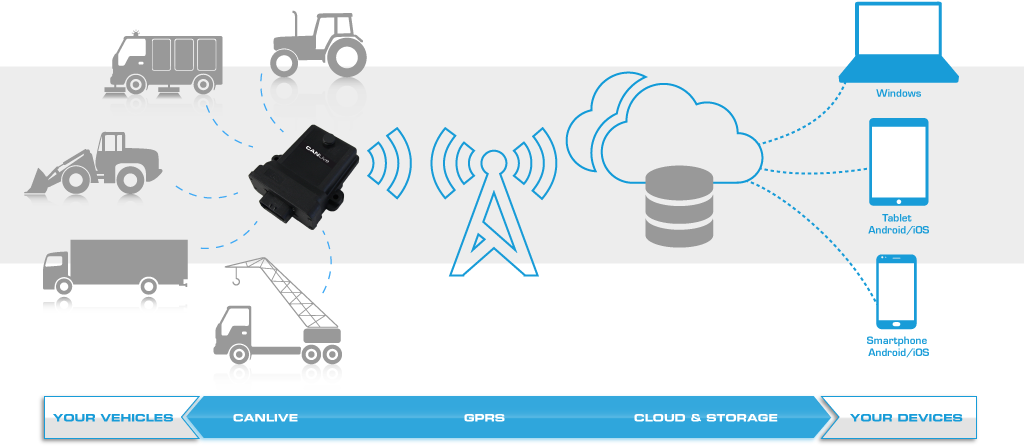

Architecture

Architecture

相关Asset:

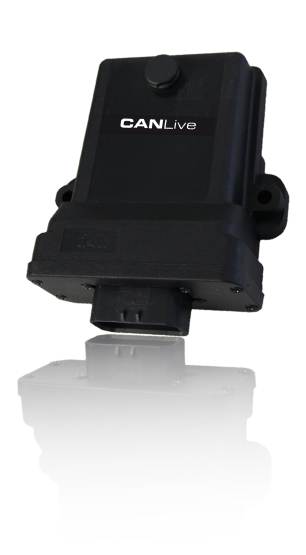

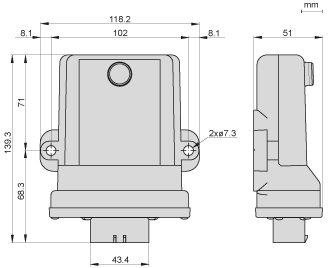

CANLive central unit features

  • 32 bit microprocessor
  • 64/128 MB memory
  • Internal integrated GPS (20 channels, 2mt precision)
  • Internal 3D accelerometer
  • 3G communication module with integrated SIM card
  • Short distance WiFi communication module (optional)
  • 2 CAN bus, 1 RS232
  • I/O
CAN Live allows the connection with the CAN network of different machines, programming input/output, geolocalization of the machines, etc…
Data Store

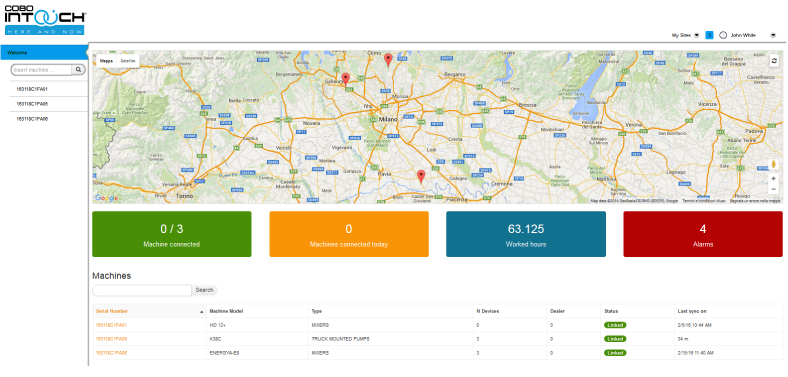

Data are stored in a database (COBO Cloud System) and provided to customers via Internet access (by smartphone, tablet and computer), whenever they need and wherever they are
Only registered users are allowed to access the web site (via registration and dedicated password)
Worldwide coverage is provided
User friendly interface can be customized with customer’s colours and logos
Geo-localization of the equipments
Real time monitoring and diagnostic
Remote software update of COBO devices
Datalogger
Data analysis & statistics
Cost savings and increase of productivity can be reached in all the fields of application
Timely technical assistance in case of unexpected events. The machines are remotely fully monitored and under control
Technical health maintenance can be scheduled in a more efficient way
Warranty can be treated with a more flexible approach, providing the possibility to check the real fault of replaced components
?
Upload of statistical information can provide useful indications to improve the management of the equipments
